After you receive your Viziosense sensor, you will notice the following components and accessories:

Sensor kit​

NP-1-4G (Single Camera)NP-2-4G (Dual Camera)
Single cameraDual camera
coveraccessory_kitpole mount

Breakdown

  1. Cameras
  2. 12V DC power port
  3. Female RJ45 port for maintenance or PoE+/Ethernet connection
  4. Mounting covers
  5. Mounting holes
  6. 230V AC to 12V DC voltage converter (optional)
  7. Allen key to adjust cameras
  8. Antennas (optional)
  9. PoE+/Ethernet connector
  10. Pole mount, hose clamps, and screws (optional)

Connector Details​

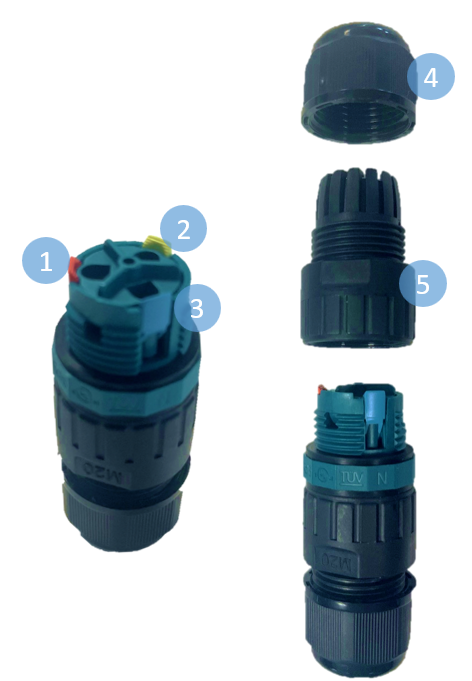

Power Connector​

Power connector

Breakdown

  1. Live wire (Red/Brown)
  2. Earth wire (Yellow)
  3. Neutral wire (Blue)
  4. Nut cover
  5. Tube with rubber core inside
note

The connector is compatible with a cable with a diameter of 5mm to 9mm.

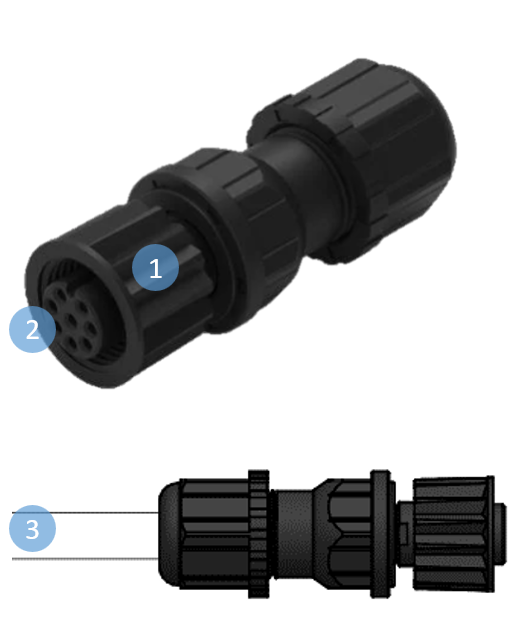

Accessory Port Connector (12v direct input)​

Accessory port connector

Breakdown

  1. Coupling nut
  2. 8-pin connector with bayonet lock
  3. Voltage converter cable

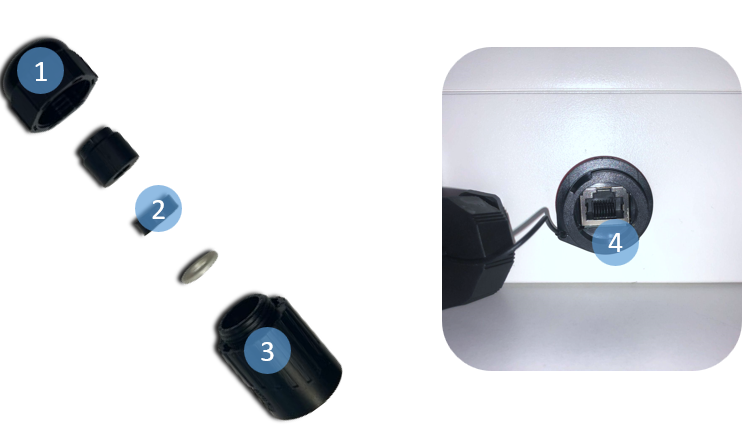

Ethernet Port Connector​

Ethernet port connector

Breakdown

  1. Nut cover
  2. Rubber seal
  3. Tube
  4. Female RJ45 port
note

The connector is compatible with a cable diameter of 5mm to 6mm, with an RJ45 end not exceeding 40mm in length and 12mm in width.
