VizioCount Barrier Installation

This application counts the number of vehicles/persons that cross a virtual line in a specific direction. The main target is to have an image where we can follow the target before, during, and after crossing the line. This application is often used to monitor the entry/exit of a parking lot or to conduct mobility studies by counting the number of objects that cross a line in the street or the road.

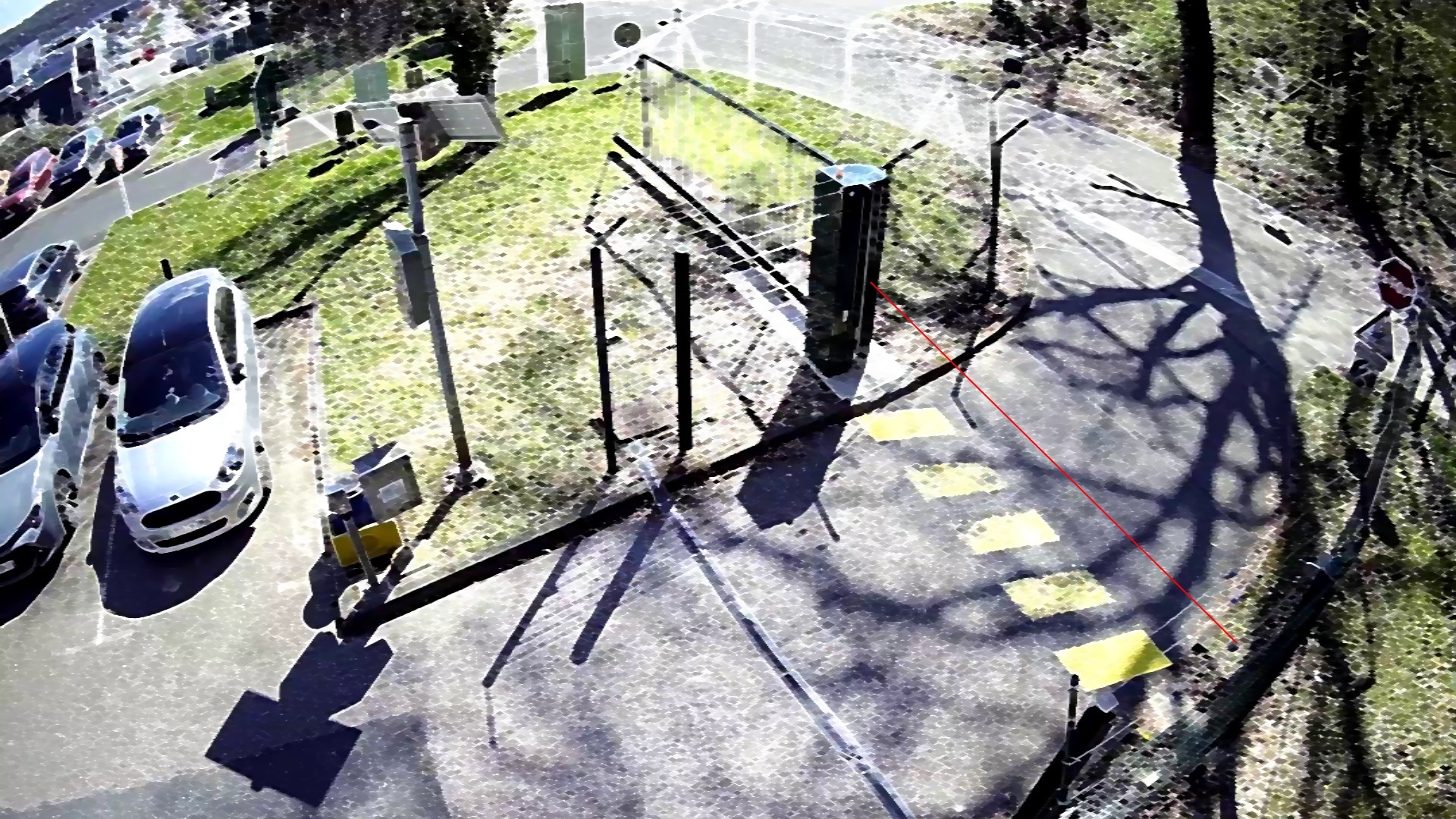

Suitable Installation​

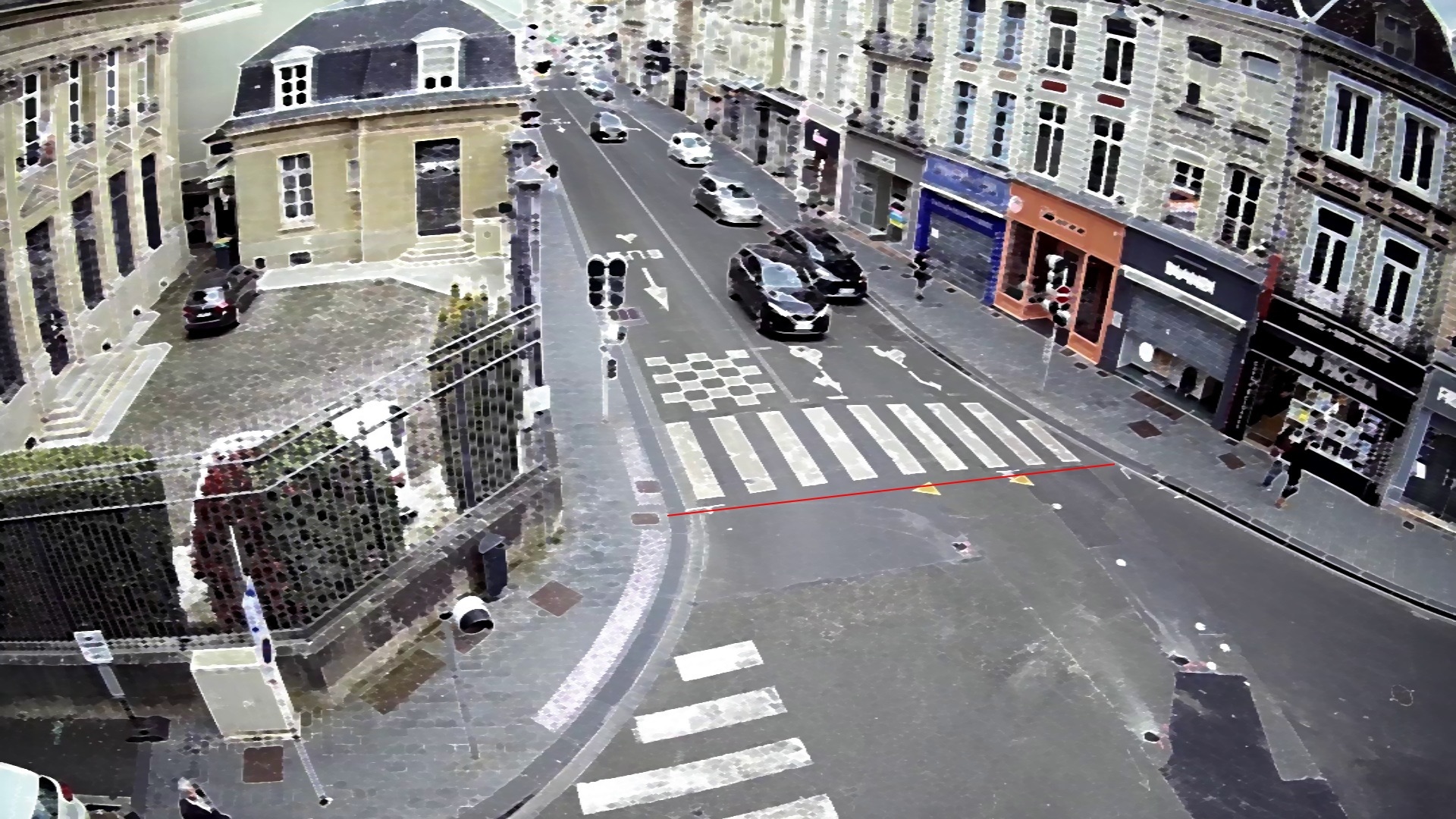

The ideal location is in an area close to the camera where vehicles are moving slowly or just starting to move. The entry point of a parking lot is often a good location.

suitable_installation_1 suitable_installation_2

Common Misplacements​

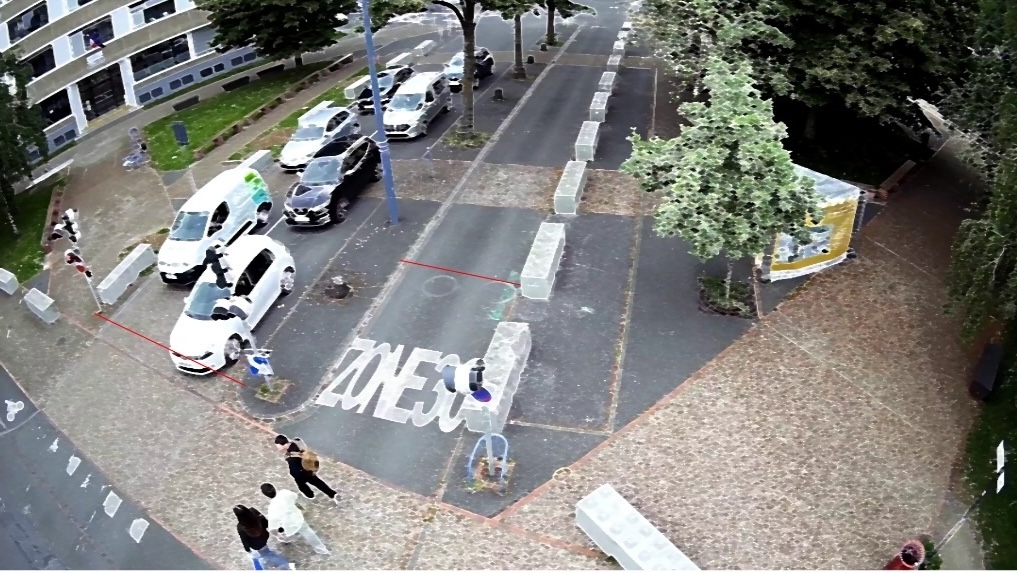

Focusing on the Line​

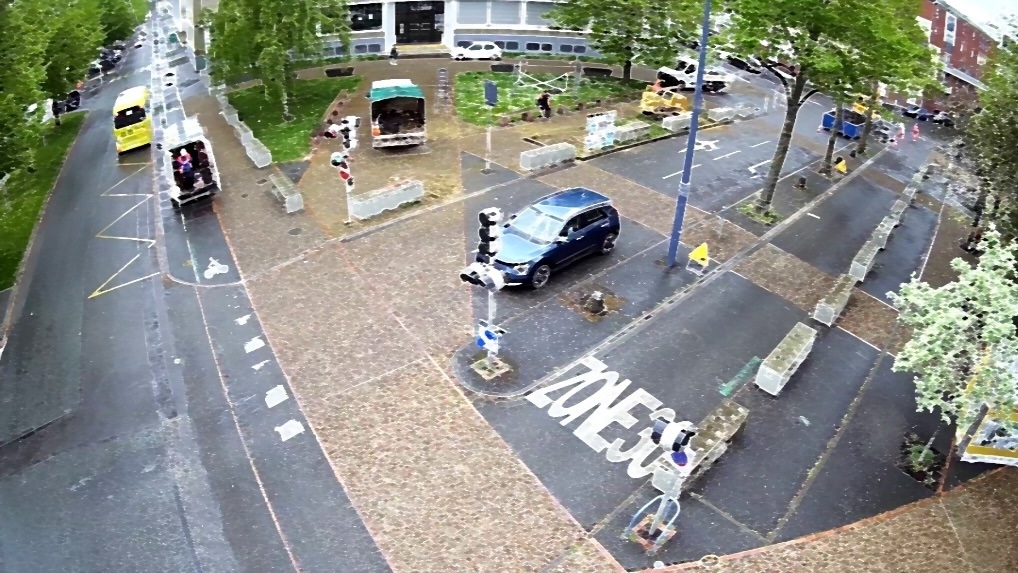

The camera should always be positioned to minimize the visibility of unnecessary roads. Focus only on the area near the counting line.

Good ✅Bad ❌
focus_goodfocus_bad

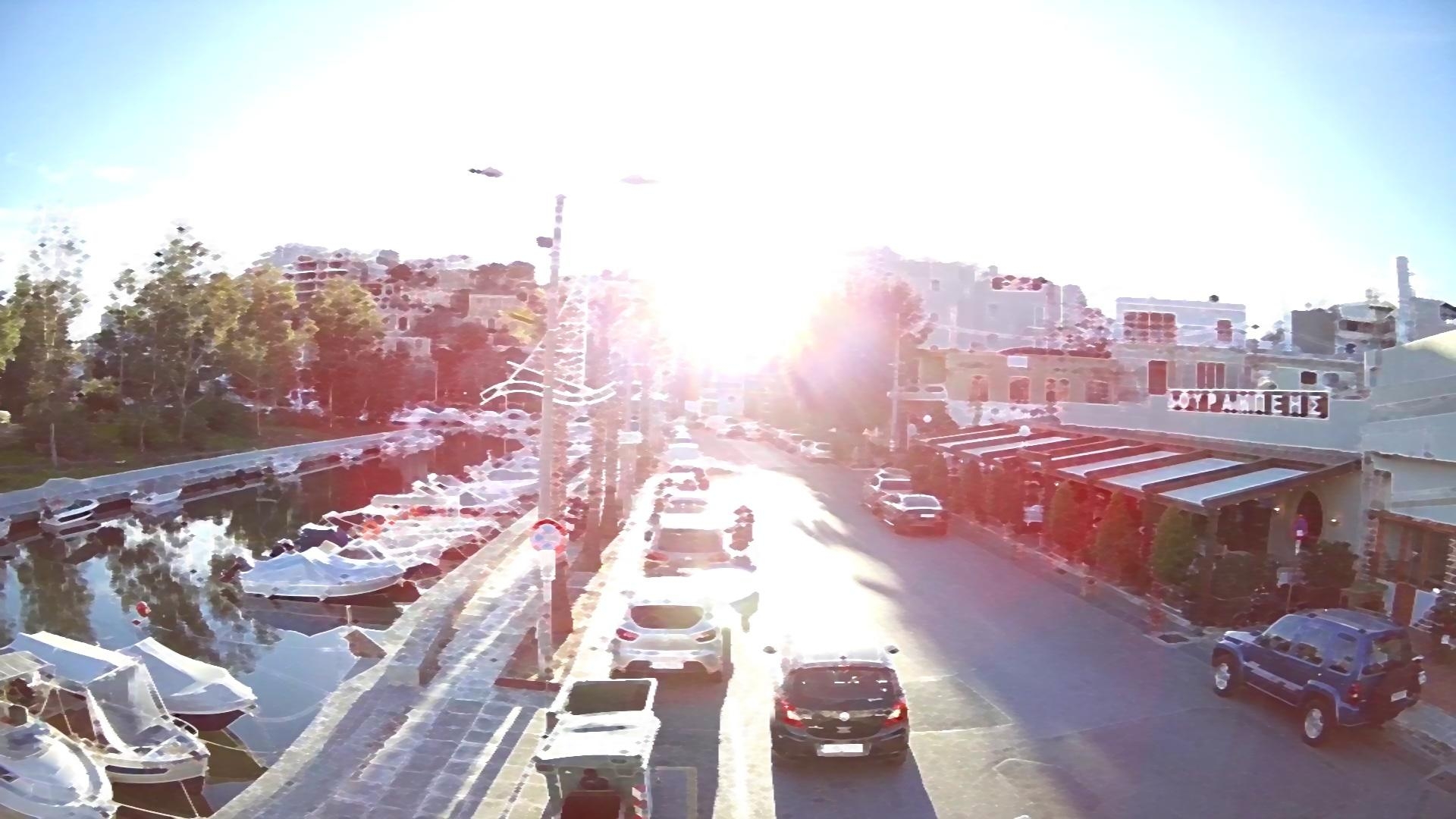

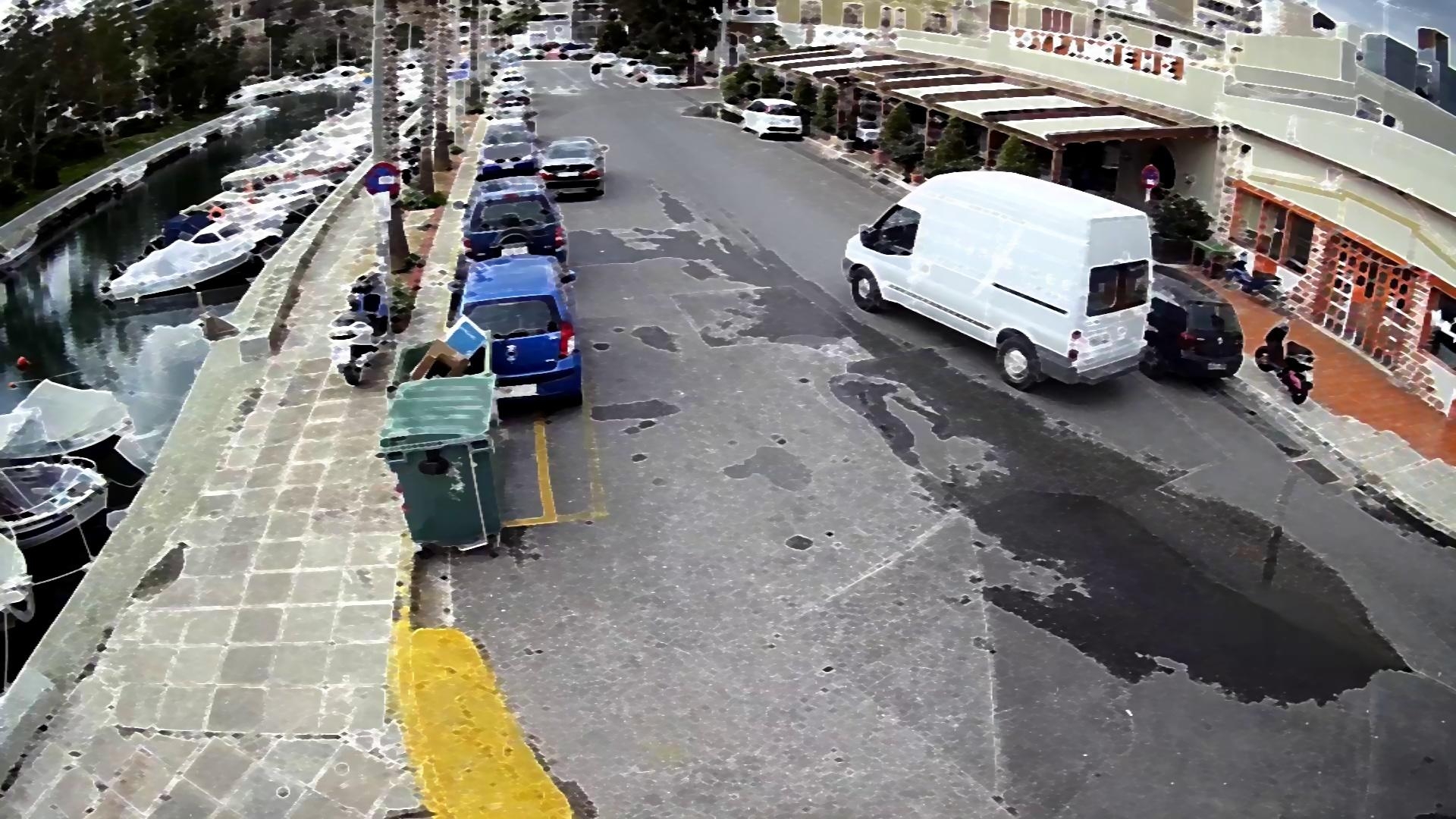

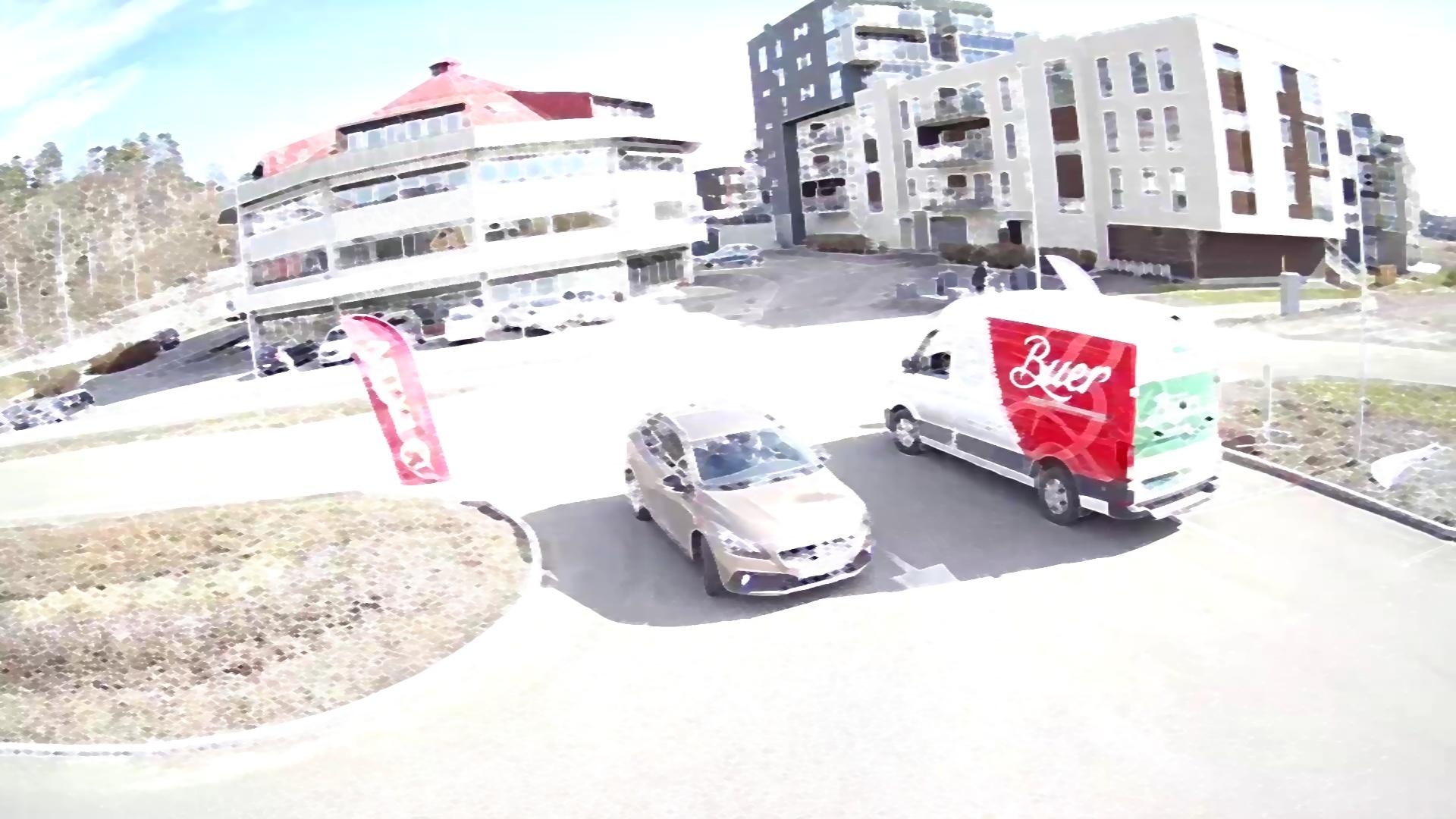

Sky/Buildings Issue​

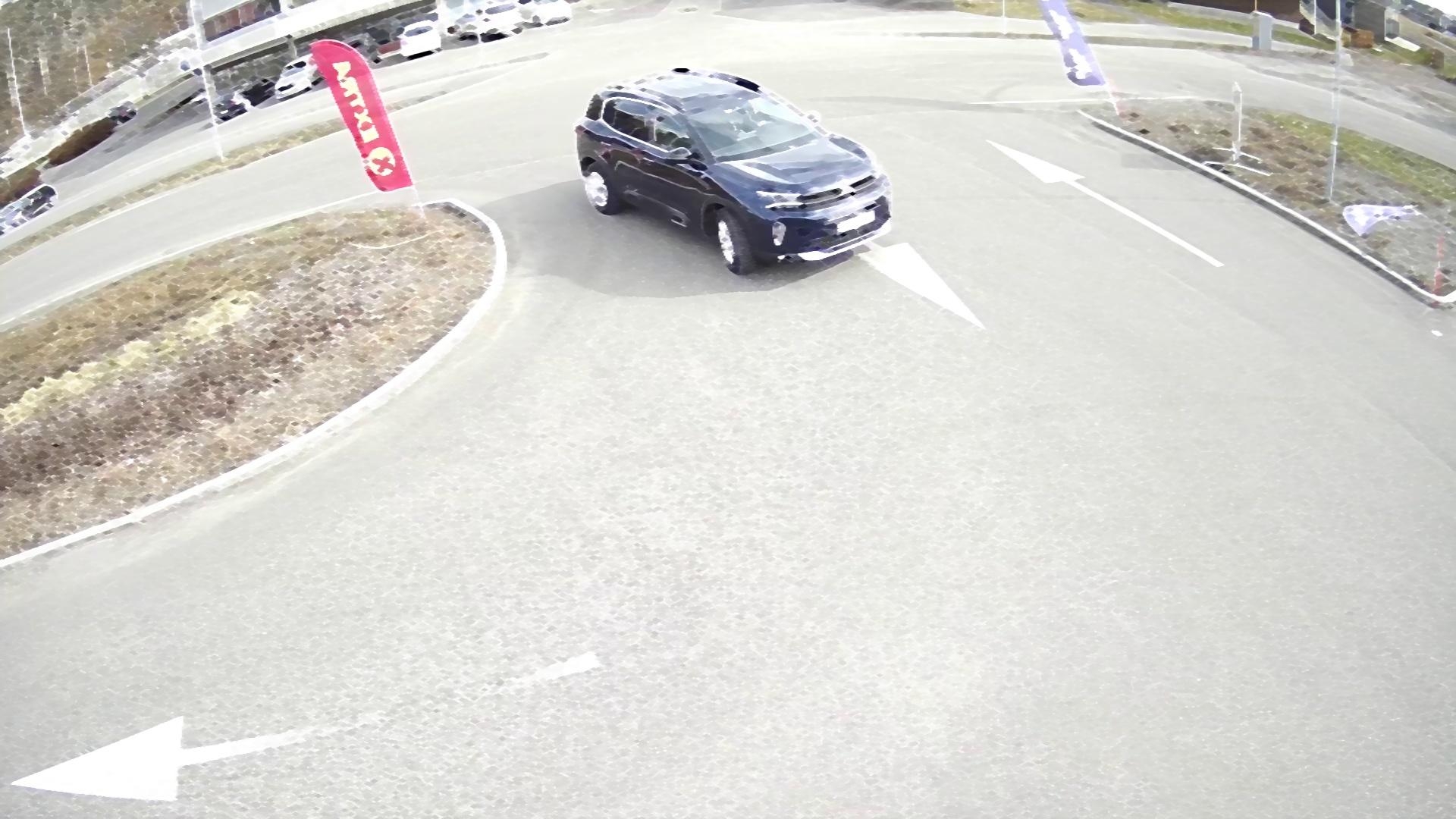

We should avoid having too many unnecessary elements such as the sky and buildings in the view to focus only on the area where the counting is taking place. This is an example of how we can orient the cameras to avoid the sky and being face to face with the sun and unnecessary buildings.

Good ✅Bad ❌
sky_buildings_good_1sky_buildings_bad_1
sky_buildings_good_2sky_buildings_bad_2

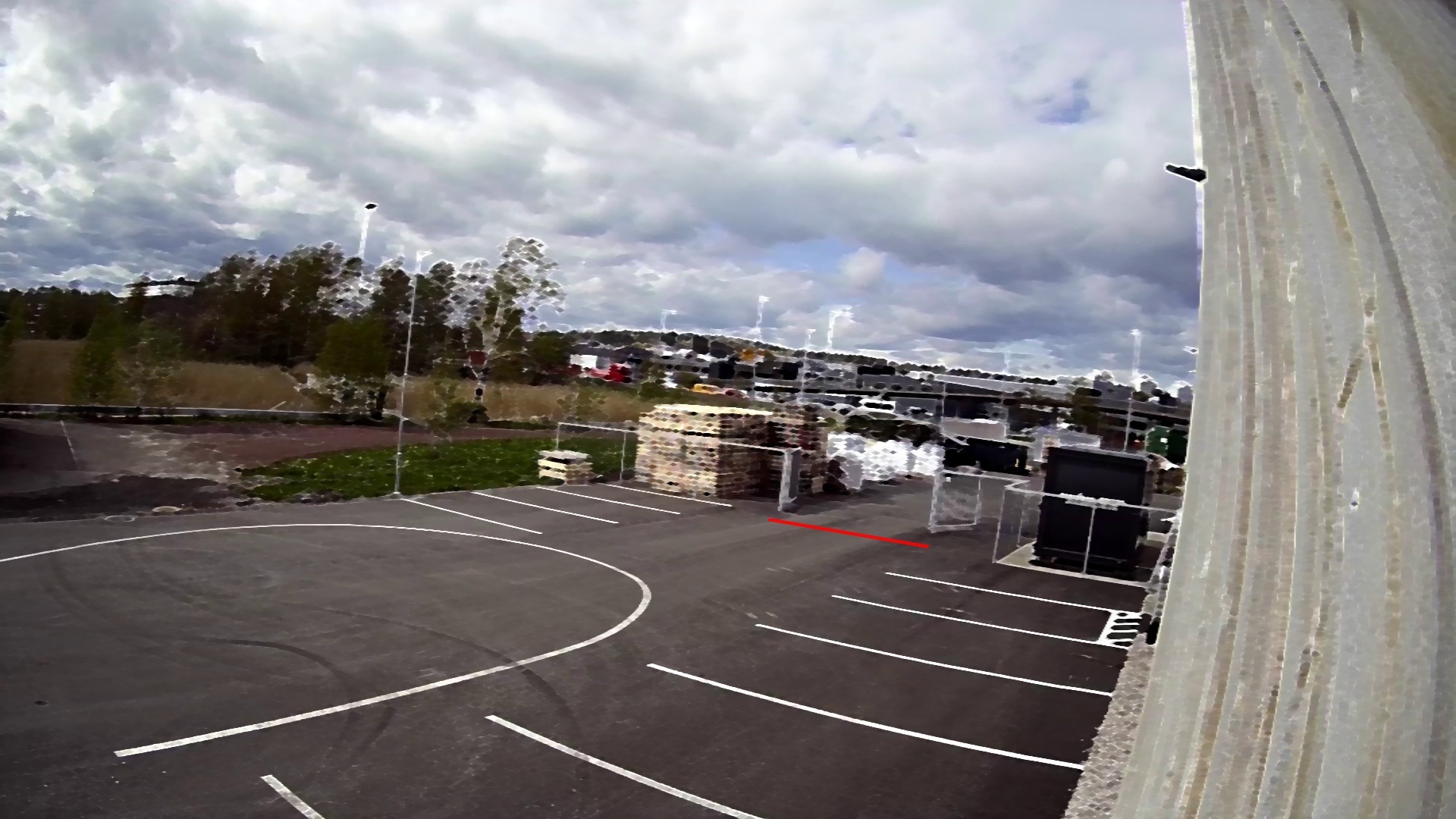

Far from the Target​

We should avoid having the line of interest far away from the camera. It should be placed as close as possible to avoid large vehicles that could hide the region of interest.

far_target

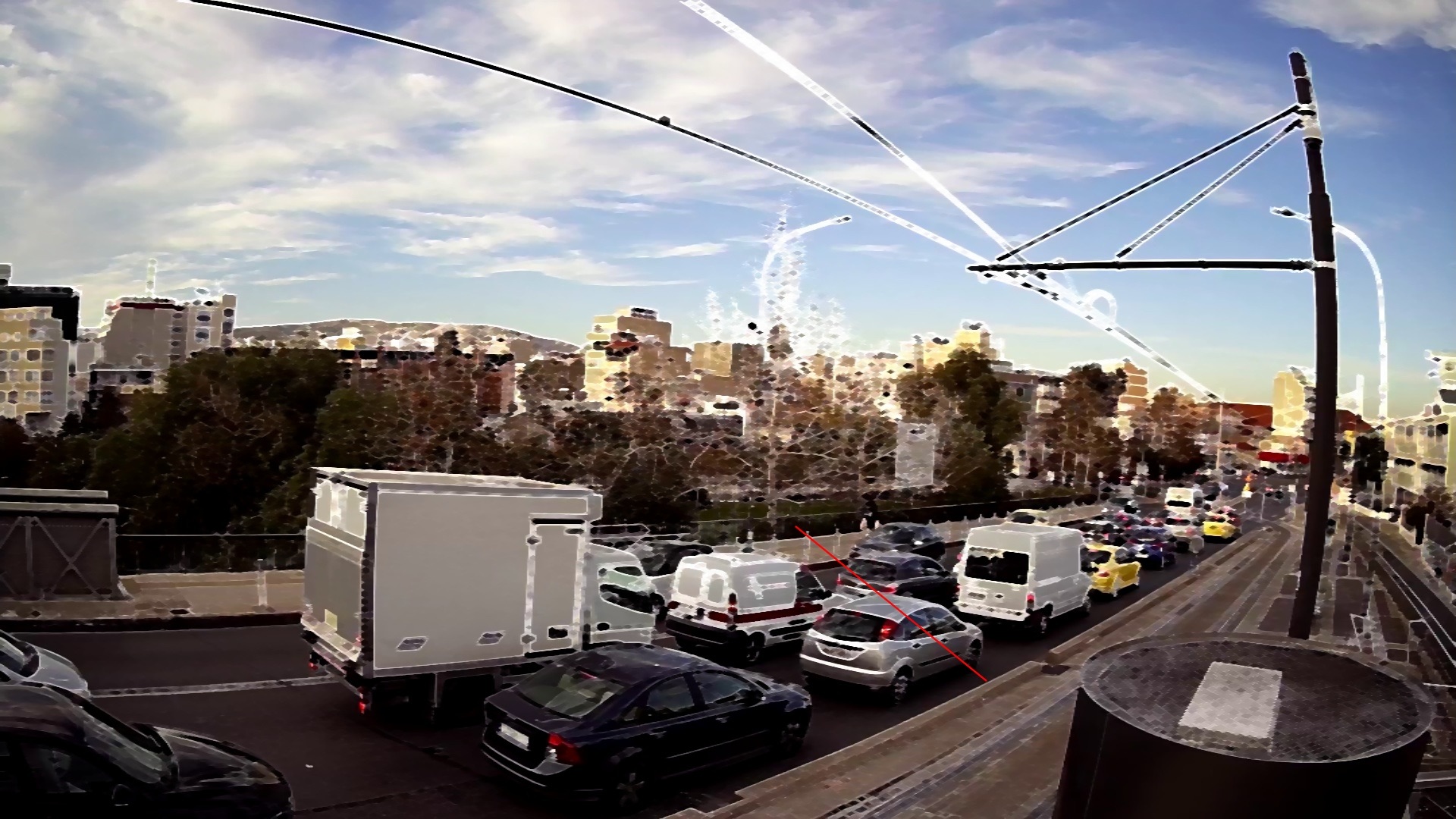

Occlusion​

If the camera height and orientation are not optimal, occlusions between vehicles that are crossing the line at the same moment could occur, introducing errors in the counting.

occlusion

warning

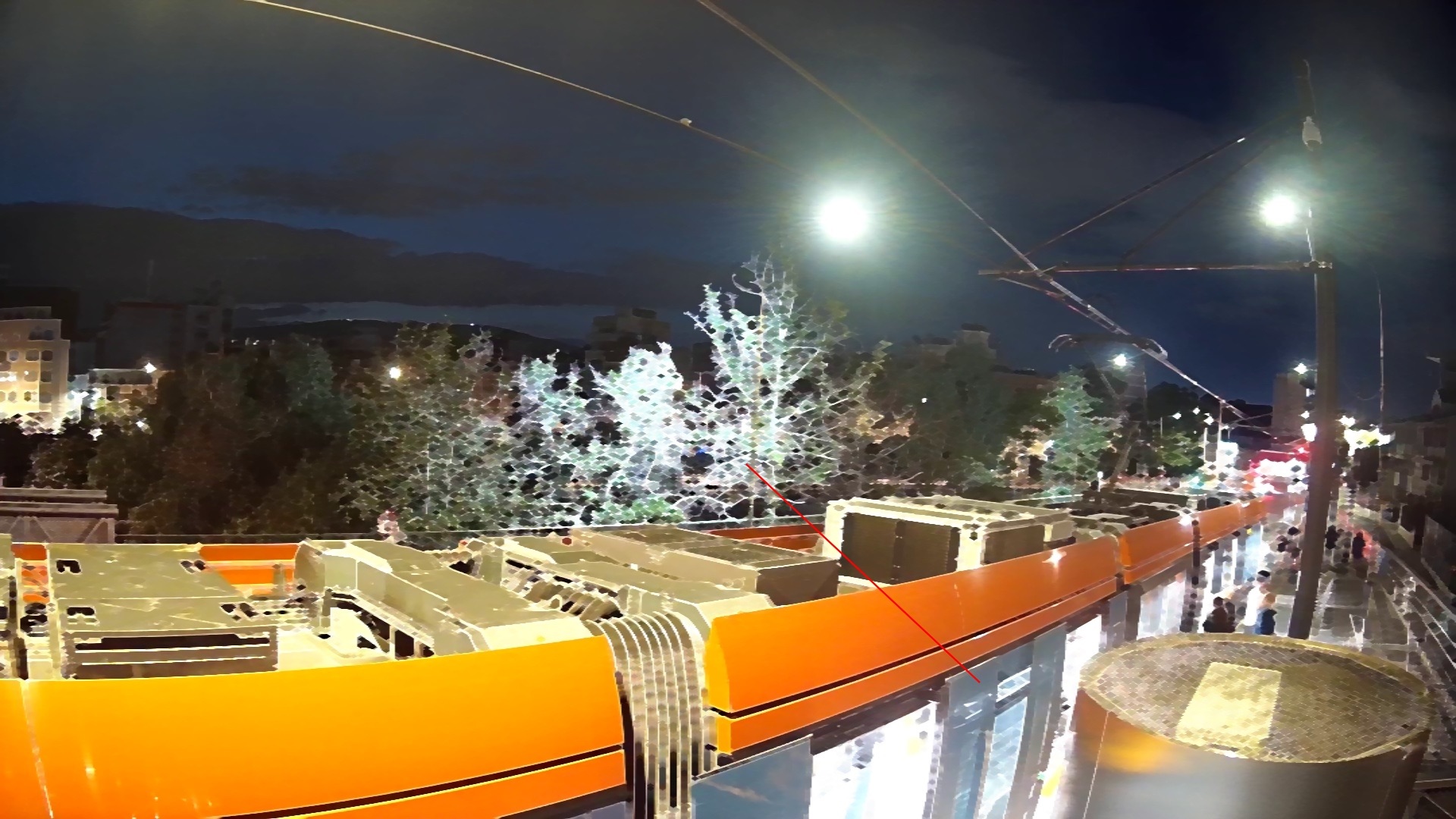

Ensure no lanes or objects (e.g., trams) can fully block the line of interest.

tram_blocking
